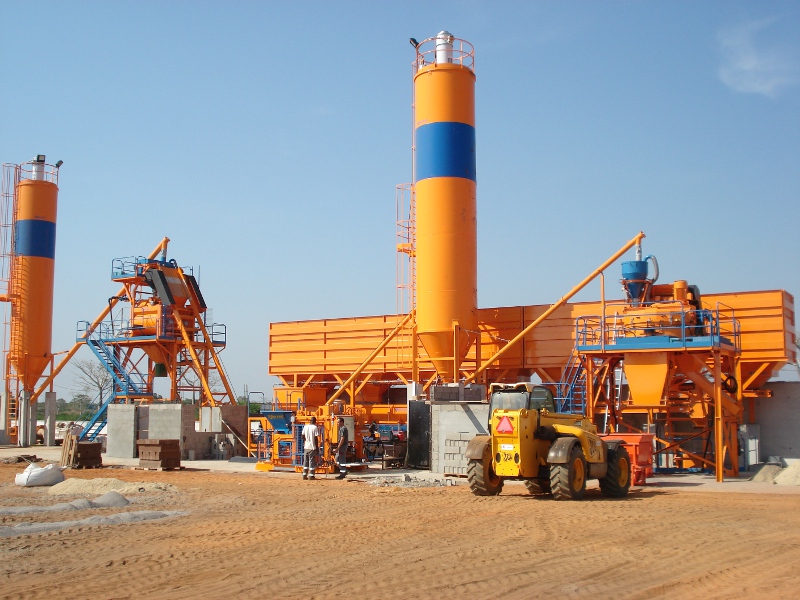

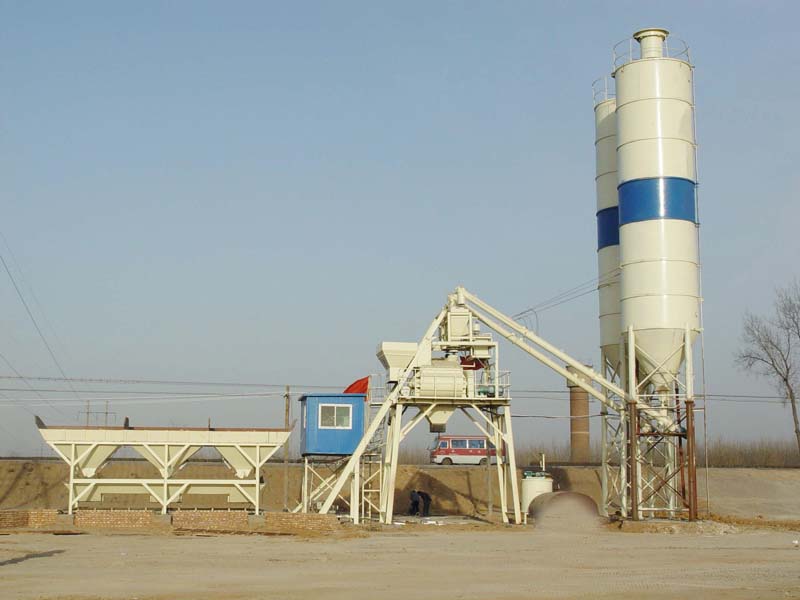

HZS50(50m3/hr) Concrete plant
clicks:2156
|
Capacity: |
50m3/h |
|
Mixing Time: |
60S |
|
Max Aggregate Size: |
60/80mm |
|
Discharging Height: |
3800mm |
|
Total Power: |
85KW |
|
Total Weight: |
40Ton |
|
Total Dimensions: |
18*11*19m |
HZS50 Concrete Mixing Plant
Descriptions of Concrete Mixing Plant:
Compared to HZS25 and HZS35 Concrete batching plant, HZS50 plants Capacity ranging from 40–50 m3/hr, it is the perfect solution for the Medium ready concrete producer or construction site. these compact plants are designed for easy set-up, low operating cost and optimal concrete quality.
The HZS50 concrete mixing plant is well suited for a wide variety of production needs including precast, ready concrete and architectural product production. It is also ideal for some small construction site, railway, bridge, road building.Preassembled modular components for low-cost installation and easy expandability. HZS50 is your smart choice and expand as your business grows.
Technical Parameters of HZS50 Concrete Mixing Plant:
Capacity:
50m3/h
Mixing Time:
60S
Max Aggregate Size:
60/80mm
Discharging Height:
3800mm
Total Power:
85KW
Total Weight:
40Ton
Total Dimensions:
18600×11000×19500mm
1. Mixer: Twin Shaft Concrete Mixer
Model:
JS1000
Mixer Capacity:
1000L
Feeding Capacity:
1600L
Fresh Concrete Capacity:
1125L
Compacted Concrete Capacity:
1000L
Mixing blade:
2×7pcs
Mixing Speed:
25r/min
Mixer Motor-Gear Box
Power:37kW
Weight:
9890kg
Dimensions:
4650×2300×2680mm
Water distributor
Pneumatic discharge door
Manuel lubrication system
This type twin shaft mixers are installed the skip system, they are easy to install and take a small size, it is a idea machine in a small project site.
2. AGGREGATE SYSTEM
2.1 Aggregate batcher:
PLD1600
Volume:
3×3.7m3
Capacity:
60m3/h
Power:
5×3kW
Discharge valves:
6unit
Weight:
5700kg
Dimension:
12900×2000×3200mm
2.2 Weighting hopper:
1unit
Load cells:
2000kg(3Units)
Hopper Capacity:
1.6m3
Power of Motor:
3kW
Aggregate batcher is designed and manufactured as per related DIN norms to operate under heavy working conditions for long time. There exist 3 electro- pneumatically controlled discharge gates, which provide easiness and choice in the discharge together with suitable elevation.
3. EMENT SYSTEM3.1 Cement silo:
2units
Capacity:
80t×2=160t
Silo Diameter:
Φ3000
Plate Thickness:
4~7mm
Silo Pressure Valve:
1unit
Level Indicators:
1unit
Silo Top Filter:
24m2
Ladder, manhole, platform, and parapets are included.
Cement silos are built with double protected dust filter systems to assure the lowest emission of dust.
3.2 Cement Screw Conveyor: 2units
Diameter:
Φ219mm
Length:
8m
Capacity
50ton/hour
Motor Power:
7.5kW
4. ADDITIVE SYSTEM
Additive silo Capacity:
0.8m3
Load cells:
40kg（1Unit）
Pneumatic Valve:
Φ50mm
Pump:
3kw
Precision:
±1%
5. WATER WEIGNING SYSTEM
Water Weighing Hopper:
1unit
Load cells:
1000kg（3Units）
Weighting Capacity:
250kg
Motor Power:
3kw
Butterfly Valve:
Φ150mm
Precision:
±1%
Piping installation on the plant
6. CEMENT WEIGHING SYSTEM
Cement Weighing Hopper:
1unit
Load cells:
1500kg（3Units）
Weighting Capacity:
600kg
Butterfly Valve:
Φ200mm
Precision:
±1%
7. PNEUMATIC SYSTEM
Air Compressor:
1unit
Power:
5.5kW
Pressure:
0.7 Mpa
Air flew:
0.67m3/min
Pipe and fittings materials
8. CONTROL SYSTEM
Control panel with PLC
1unit
Computer display:
17inch
Control Cabin:
1unit
Printer:
1unit
Software:
1unit
Manuel and Auto Control is freely changeable
9. OPTIONAL ACCESSORIES
- Auto Control System with Computer.
- Four Bins Bolted Hoppers in place of Batching Bunker.
- Additive System
- Cement & Fly Ash Silo with Screw Conveyor/ Pneumatically Pipe Feeding System.
- Air-condition Control Cabin
