HZS35 (35m3/hr) Concrete plant
clicks:2644
|
Capacity: |
35m3/h |
|
Mixing Time: |
60S |
|
Max Aggregate Size: |
60/80mm |
|
Discharging Height: |
3800mm |
|
Total Power: |
75KW |
|
Total Weight: |
25Ton |
|
Total Dimensions: |
15×8×12m |

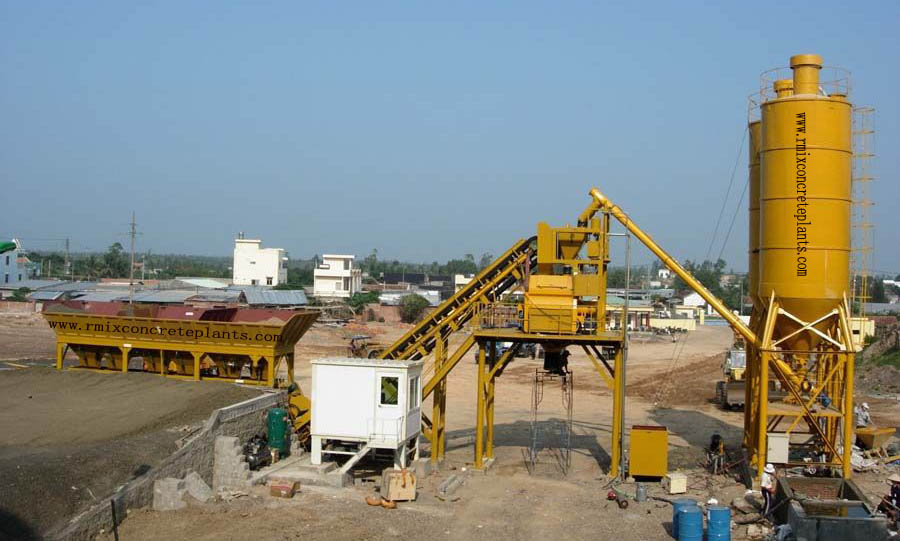

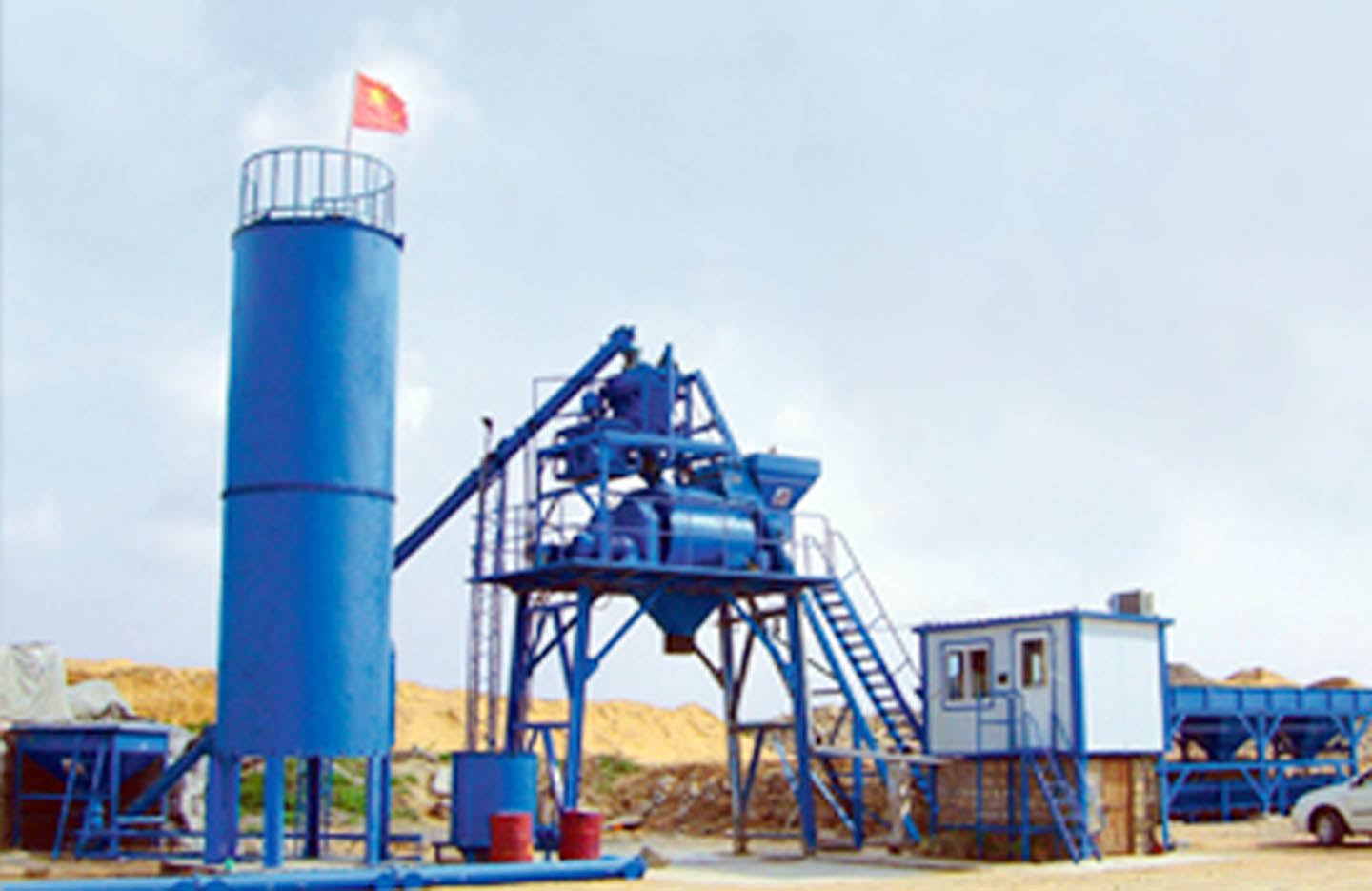

HZS35 Concrete Mixing Plant
Descriptions of Concrete Mixing Plant:
Same as HZS25 Concrete batching plant, HZS35 is easy to operate HZS35 plants are the perfect solution for the small concrete producer or construction site. Capacity ranging from 30–35 m3/hr,these compact plants are designed for easy set-up, low operating cost and optimal concrete quality.
HZS35 is the economical way for the small producer to make professional grade concrete. HZS35 concrete mixing plants arrive on site pre-wired, pre-plumbed and factory tested. The plug and play feature is what makes HZS35 truly stand out. They are so easy to set-up that they can be up and running within three days of installation. HZS35 allows users to achieve super fast 70-second batch cycles for conventional concrete, including batching, charging a mixer, mixing and discharge. This delivers a maximum output of 45 concrete batches per hour with continuous production. The HZS35 concrete batch plant has a positive, accumulative aggregate weighing system providing ultra precise batching and all batch components (aggregate, admixtures, and cement) can be pre-weighed and ready while another batch is mixing.
The HZS35 concrete mixing plant is well suited for a wide variety of production needs including precast, ready concrete and architectural product production. It is also ideal for some small construction site, railway, bridge ,road building.
The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation, you can choose them as your project.Technical Parameters of HZS35 Concrete Mixing Plant:
Capacity:
35m3/h
Mixing Time:
60S
Max Aggregate Size:
60/80mm
Discharging Height:
3800mm
Total Power:
75KW
Total Weight:
25Ton
Total Dimensions:
15000×8000×12000mm
1. Mixer: Twin Shaft Concrete Mixer
Model:
JS750
Mixer Capacity:
750L
Feeding Capacity:
1200L
Fresh Concrete Capacity:
825L
Compacted Concrete Capacity:
750L
Mixing blade:
2×7pcs
Mixing Speed:
35r/min
Mixer Motor-Gear Box Power:
30kW
Weight:
3700kg
Dimensions:
3030×2300×2680mm
Water distributor
Pneumatic discharge door
Manuel lubrication system
This type twin shaft mixers are installed the skip system, they are easy to install and take a small size, it is a idea machine in a small project site. The ready-mixed concrete flows through a special padded tube, to the mixer trucks.
2. AGGREGATE SYSTEM
2.1 Aggregate batcher:
PLD1200
Volume:
3×2.2m3
Capacity:
60m3/h
Power:
5×3kW
Discharge valves:
6unit
Weight:
4900kg
Dimension:
9600×2000×3200mm
2.2 Weighting hopper:
1unit
Load cells:
1500kg(3Unit)
Hopper Capacity:
1.2m3
Power Of Motor:
3kW
Aggregate batcher is designed and manufactured as per related DIN norms to operate under heavy working conditions for long time. There exist 3 electro- pneumatically controlled discharge gates, which provide easiness and choice in the discharge together with suitable elevation.
3. EMENT SYSTEM3.1 Cement silo:
2units
Capacity:
50t×2=100t
Silo Diameter:
Φ2800
Plate Thickness:
4~7mm
Silo Pressure Valve:
1unit
Level Indicators:
1unit
Silo Top Filter:
24m2
Ladder, manhole, platform, and parapets are included.
Mixing plants produced by PENGFEI, suits all required environment directions in the European region.
3.2 Cement Screw Conveyor:
2units
Diameter:
Φ219mm
Length:
8m
Capacity
50ton/hour
Motor Power:
7.5kW
4. ADDITIVE SYSTEM
Additive silo Capacity:
0.8m3
Load cells:
40kg（1Unit）
Pneumatic Valve:
Φ50mm
Pump:
3kw
Precision:
±1%
5. WATER WEIGNING SYSTEM
Water Weighing Hopper:
1unit
Load cells:
500kg（3Units）
Weighting Capacity:
200kg
Motor Power:
3kw
Butterfly Valve:
Φ150mm
Precision:
±1%
Piping installation on the plant
6. CEMENT WEIGHING SYSTEM
Cement Weighing Hopper:
1unit
Load cells:
1000kg（3Units）
Weighting Capacity:
400kg
Butterfly Valve:
Φ200mm
Precision:
±1%
7. PNEUMATIC SYSTEM
Air Compressor:
1unit
Power:
5.5kW
Pressure:
0.7 Mpa
Air flew:
0.67m3/min
Pipe and fittings materials
8. CONTROL SYSTEM
Control panel with PLC
1unit
Computer display:
17inch
Control Cabin:
1unit
Printer:
1unit
Software:
1unit
Manuel and Auto Control is freely changeable
9. OPTIONAL ACCESSORIES
- Auto Control System with Computer.
- Four Bins Bolted Hoppers in place of Batching Bunker.
- Additive System
- Cement & Fly Ash Silo with Screw Conveyor/ Pneumatically Pipe Feeding System.
- Air-condition Control Cabin
